Our ProfessionaL Solutions

Submar provides durable, articulated concrete revetment mats designed for pipeline protection, erosion control, and stabilization in harsh environments such as subsea locations, inland waterways, and arid regions. Submar mats, approved by regulatory agencies like BSEE and DOT, are trusted across industries for their safety, quality, and long-term cost-effectiveness. In addition to manufacturing and supplying mats, Submar offers comprehensive pipeline erosion mitigation services, including site inspections, construction, environmental permitting, and drone monitoring, as well as specialized offshore deployment frames for precise mat placement at various depths.

Swipe for more solutions >>>

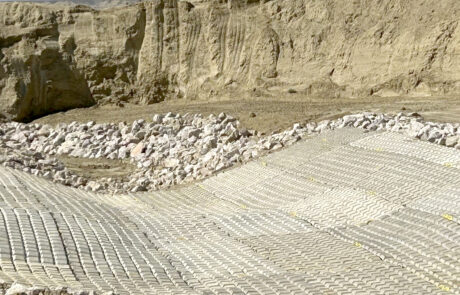

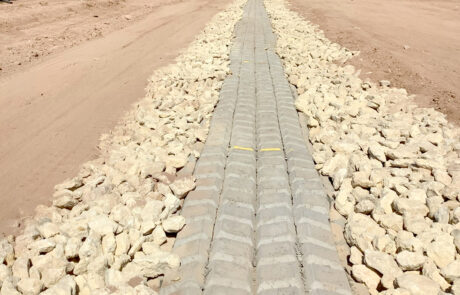

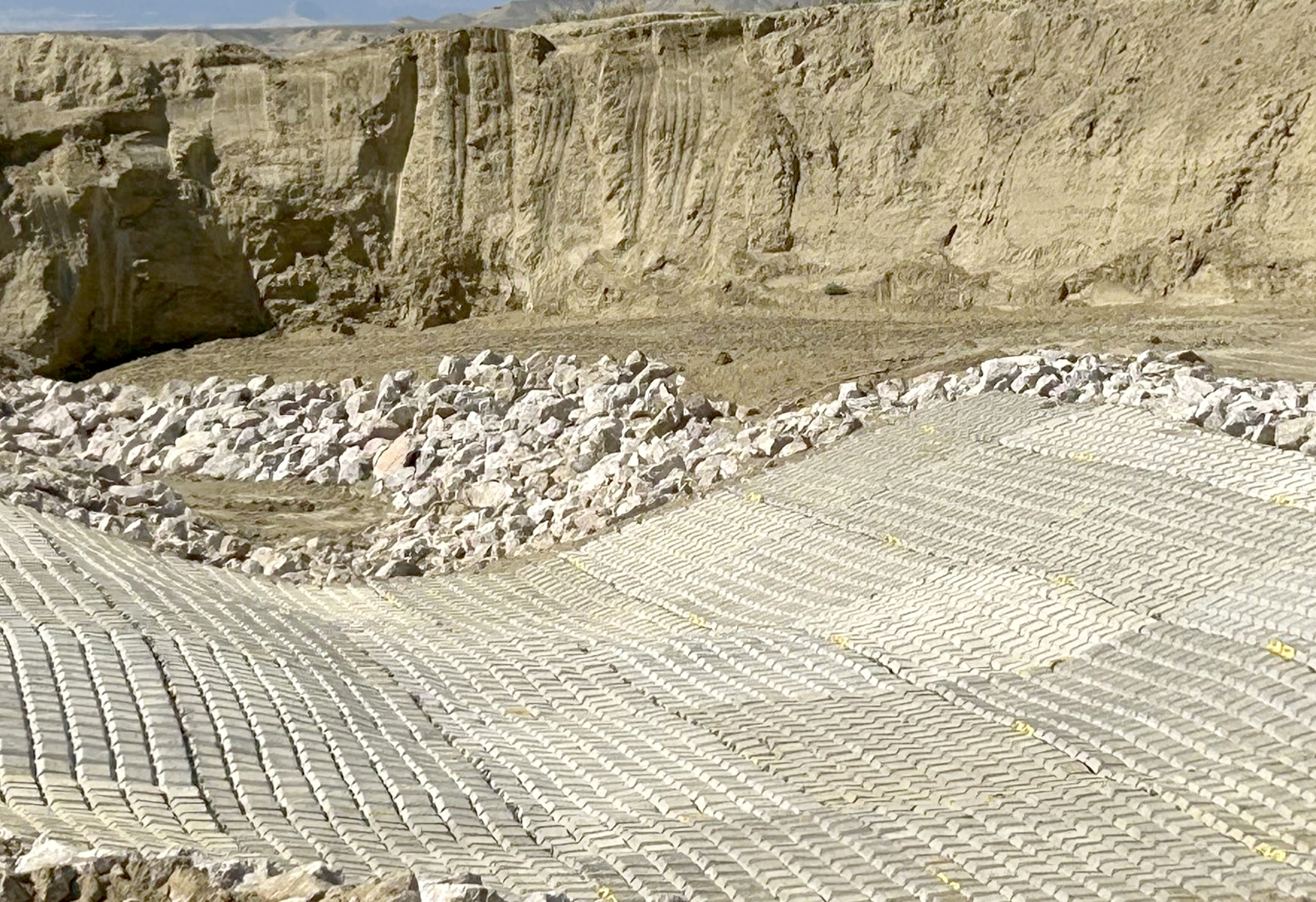

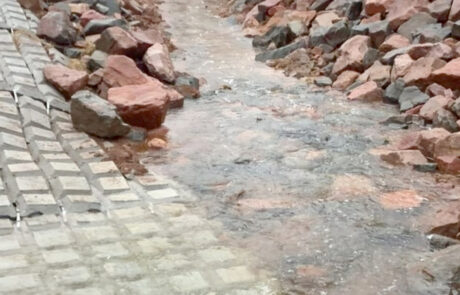

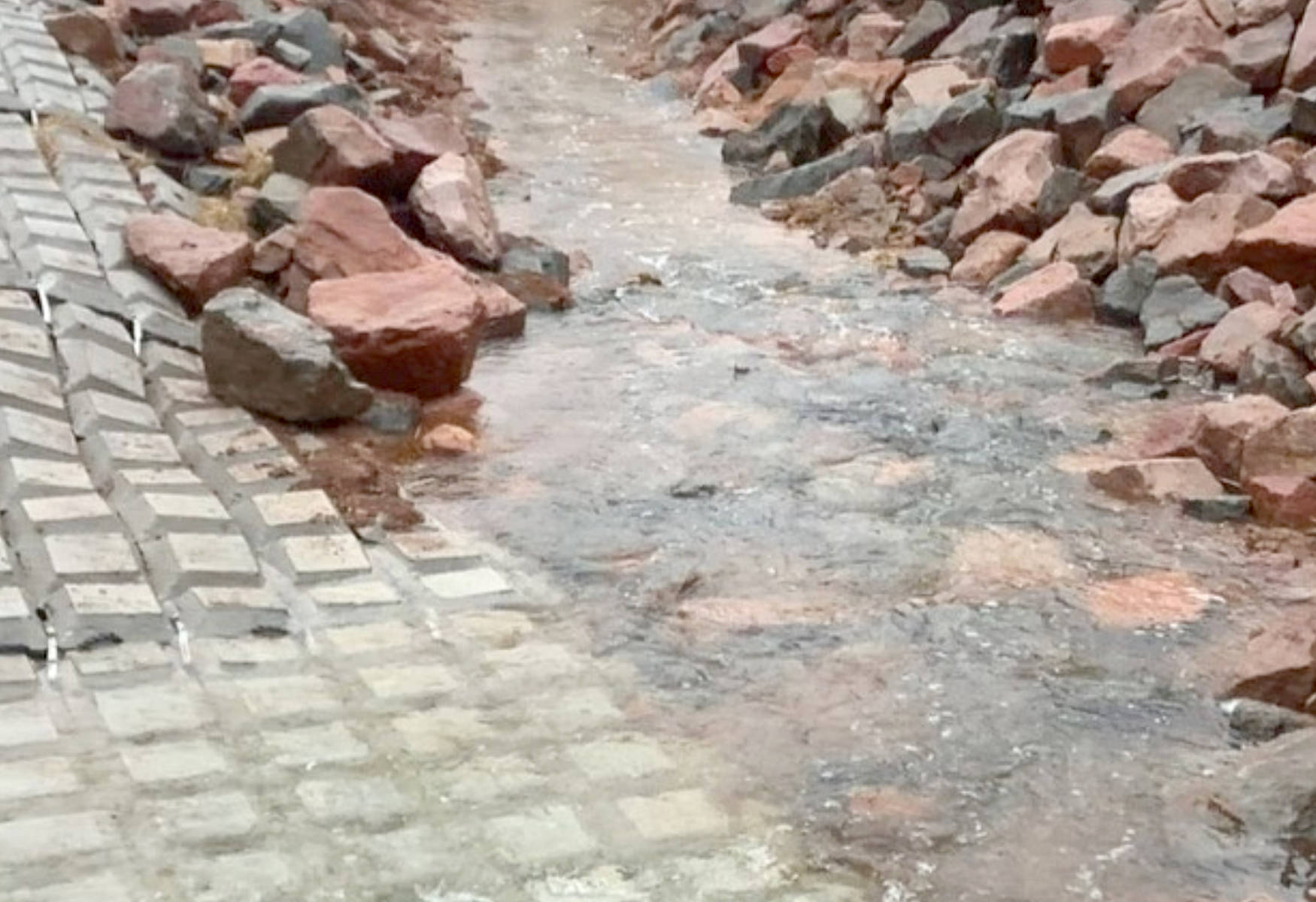

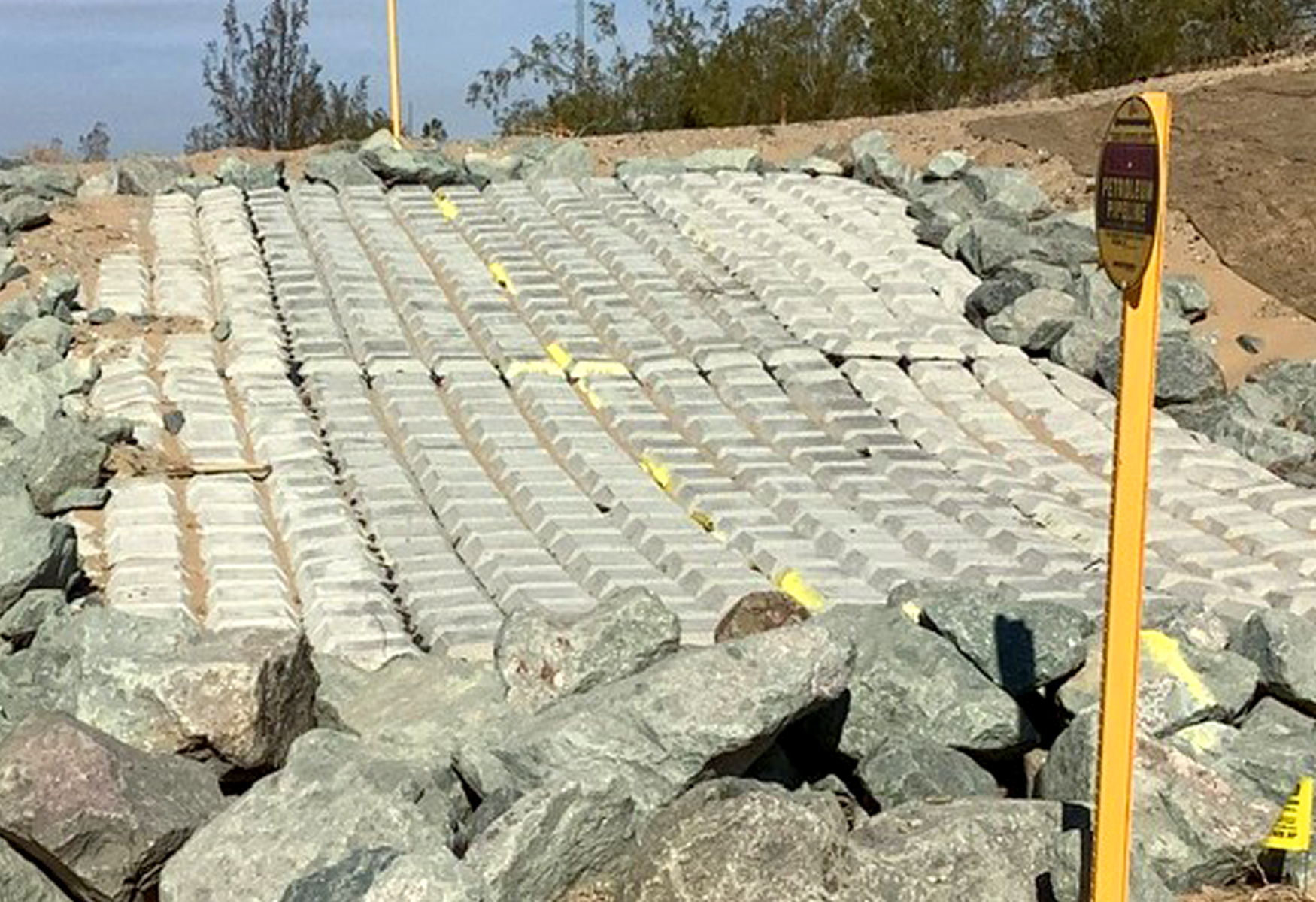

Onshore Mats

Submar revetment mats provide a resilient, eco-friendly solution for pipeline protection and erosion control, blending seamlessly with natural surroundings while maintaining streambed stability and supporting biodiversity.

About Our Onshore Mats

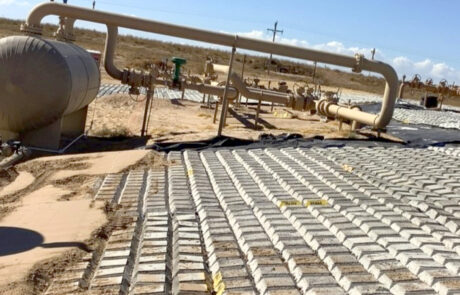

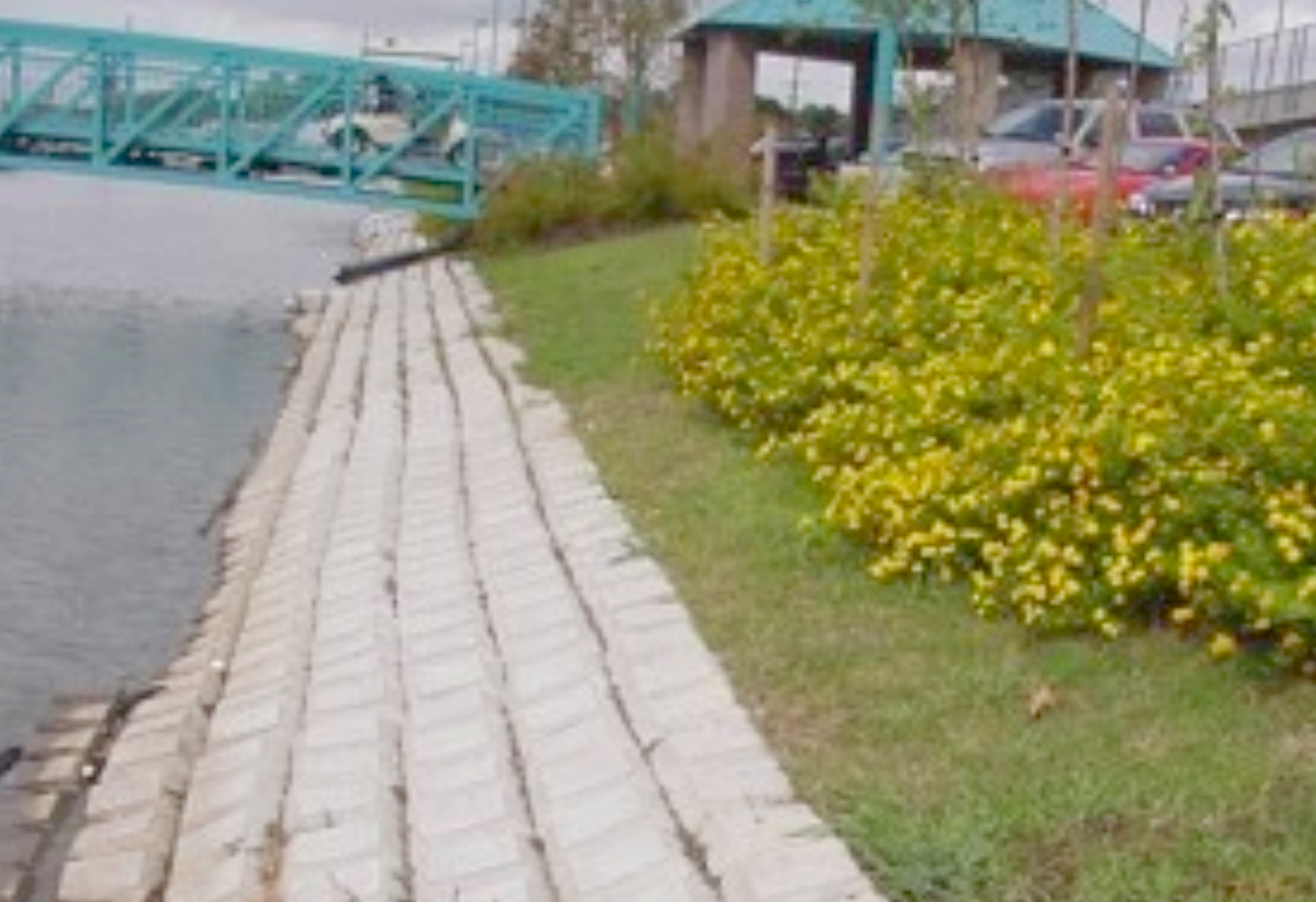

Articulating concrete revetment mats are a cost-effective, long-term solution. These mats, which are also used for pipeline separations and erosion control, consist of flexible concrete elements connected by ultraviolet stabilized copolymer extruded fiber rope.

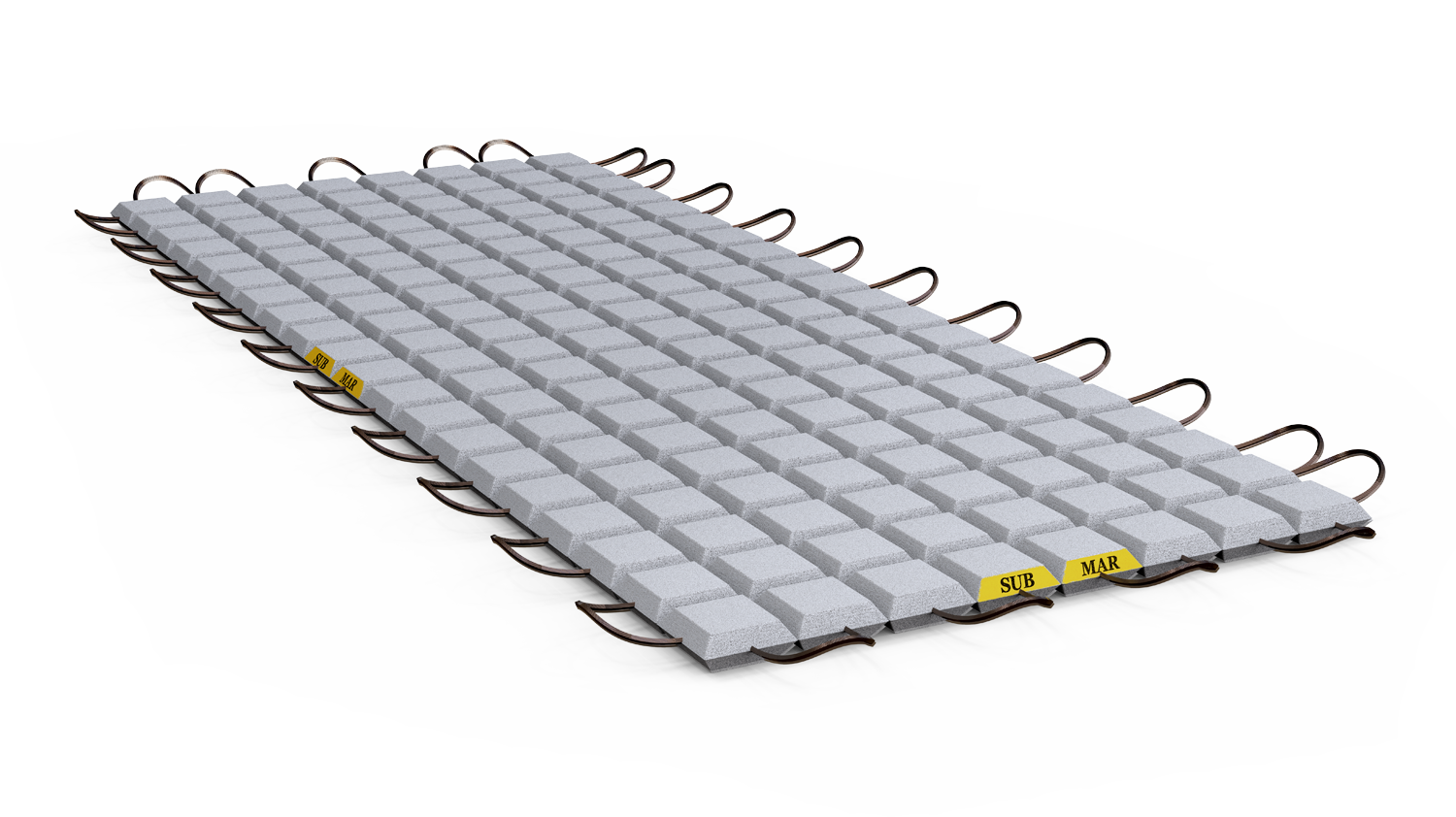

Submar Revetment Mats

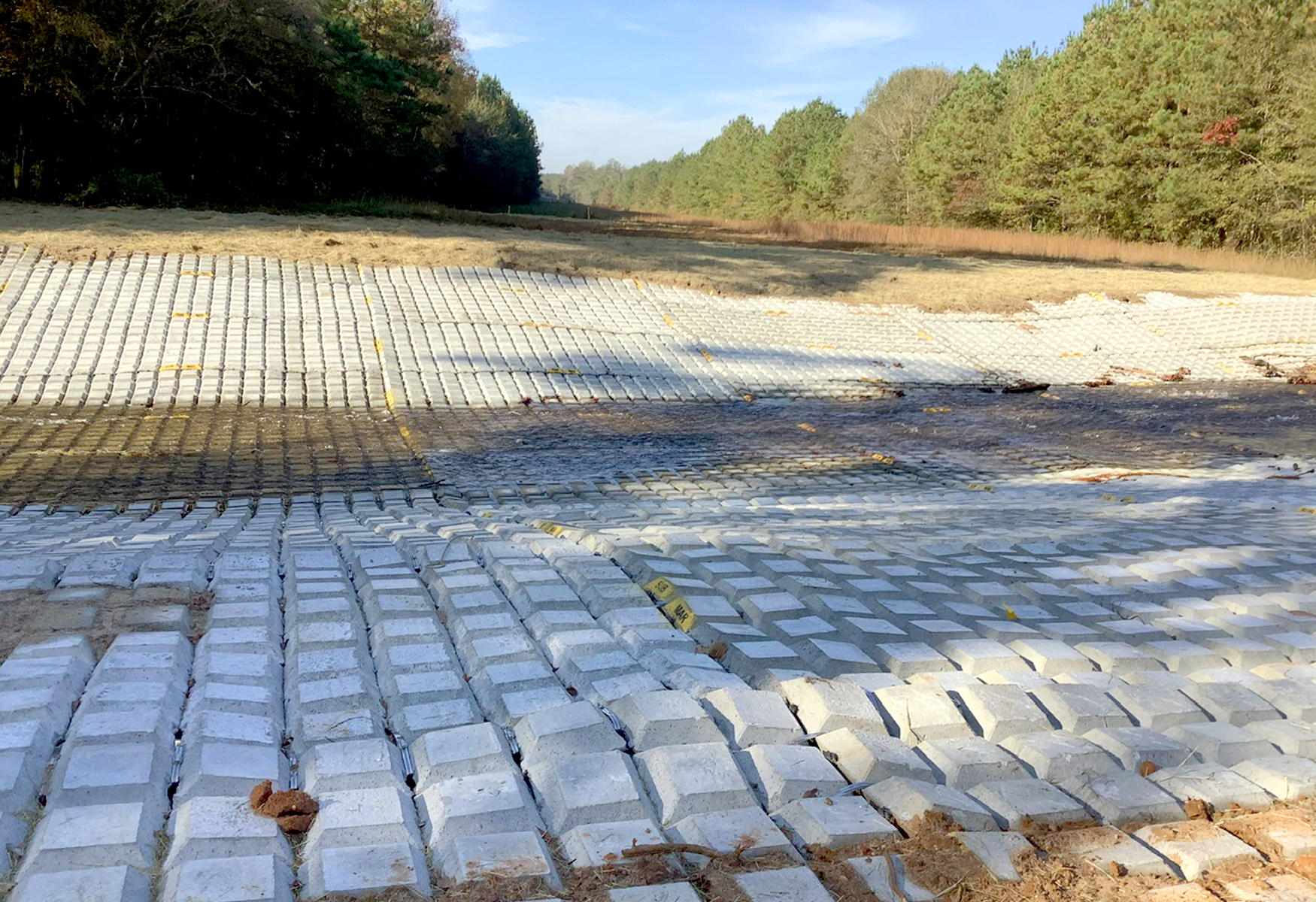

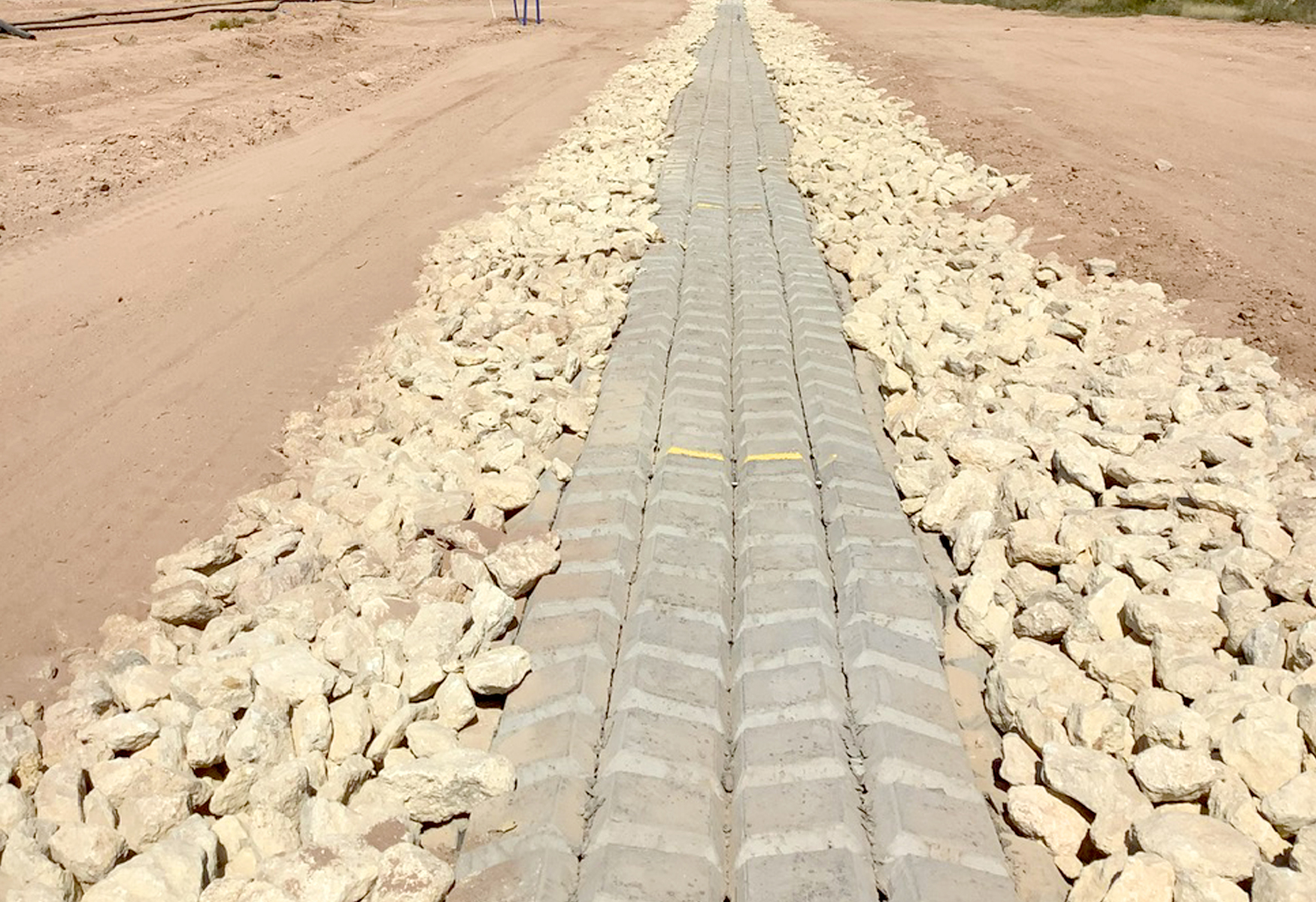

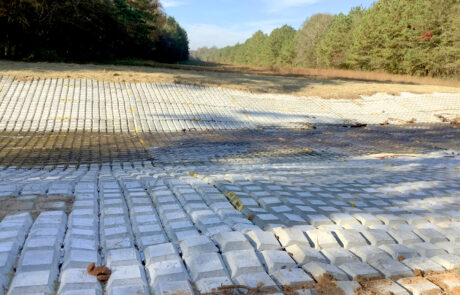

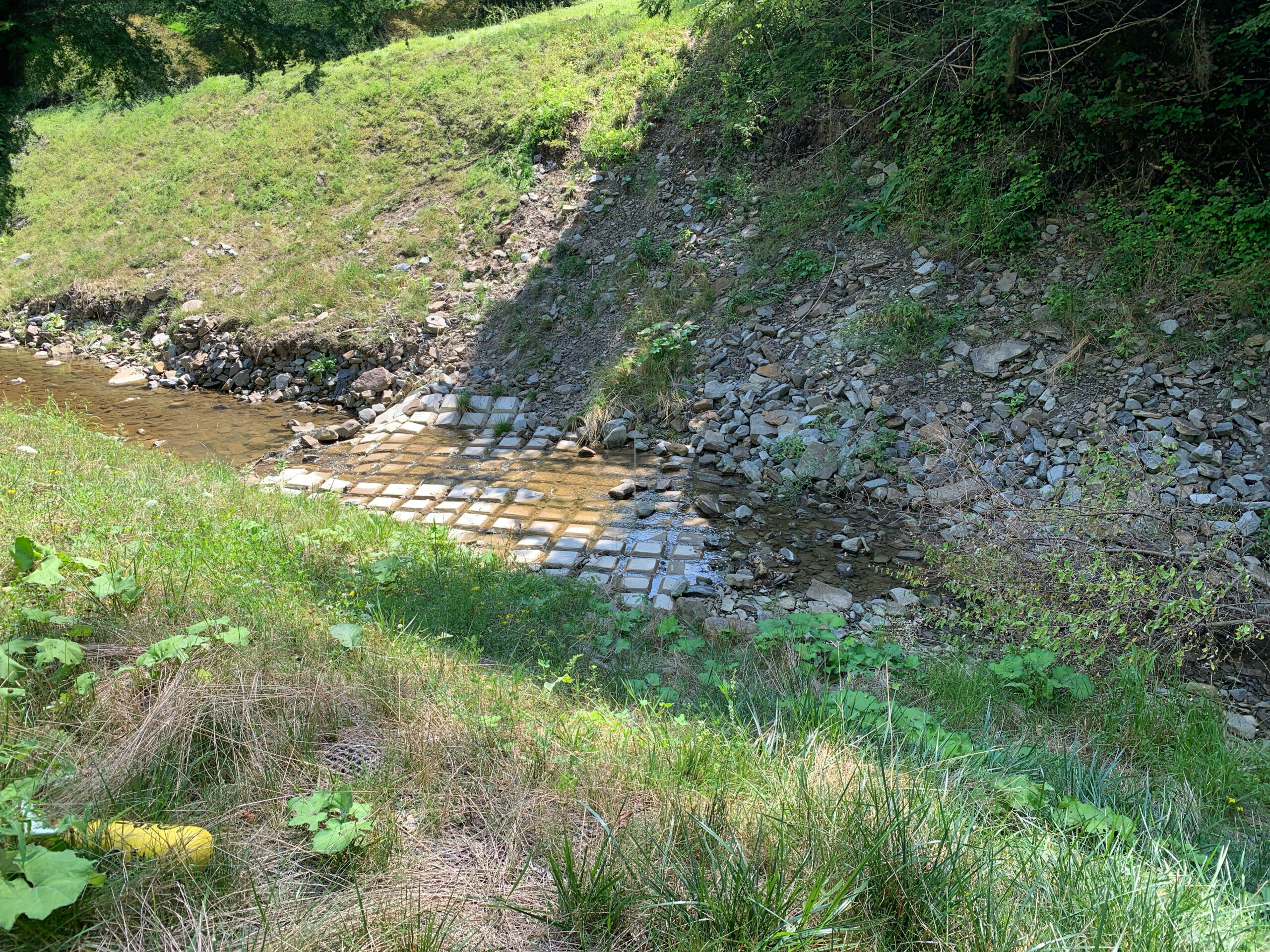

  • The Submar revetment mattress is an articulating concrete mat that is commonly used as protective cover for pipelines in rivers and streams.
  • The concrete mat solution will provide a long-term, continuous system of hard-armor protection for the entire length of the pipeline from high bank to high bank.
  • The mats are considered “engineered riprap” and, in comparison to riprap, will perform better in the bed of the stream where the highest shear stresses occur.
  • The mats have a low hydraulic profile in the streambed at only 4.5-inches thick.
  • The mats can be removed and replaced for maintenance of the pipeline if necessary.
  • The concrete mats will articulate and self-adjust with the streambed to prevent the upstream migration of future head cut erosion.

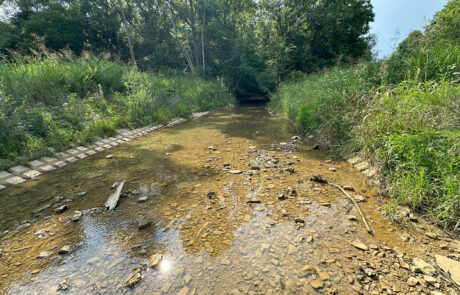

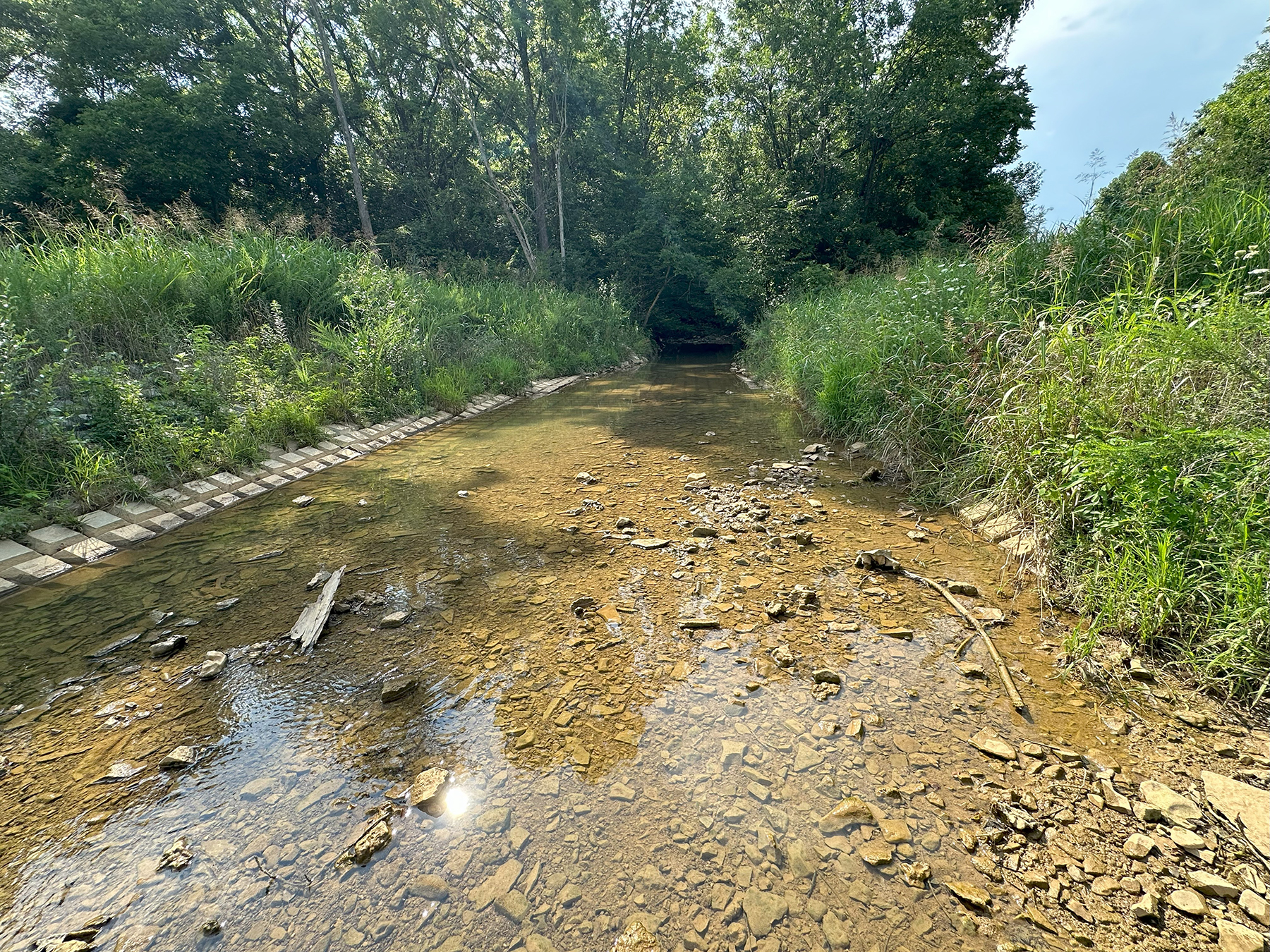

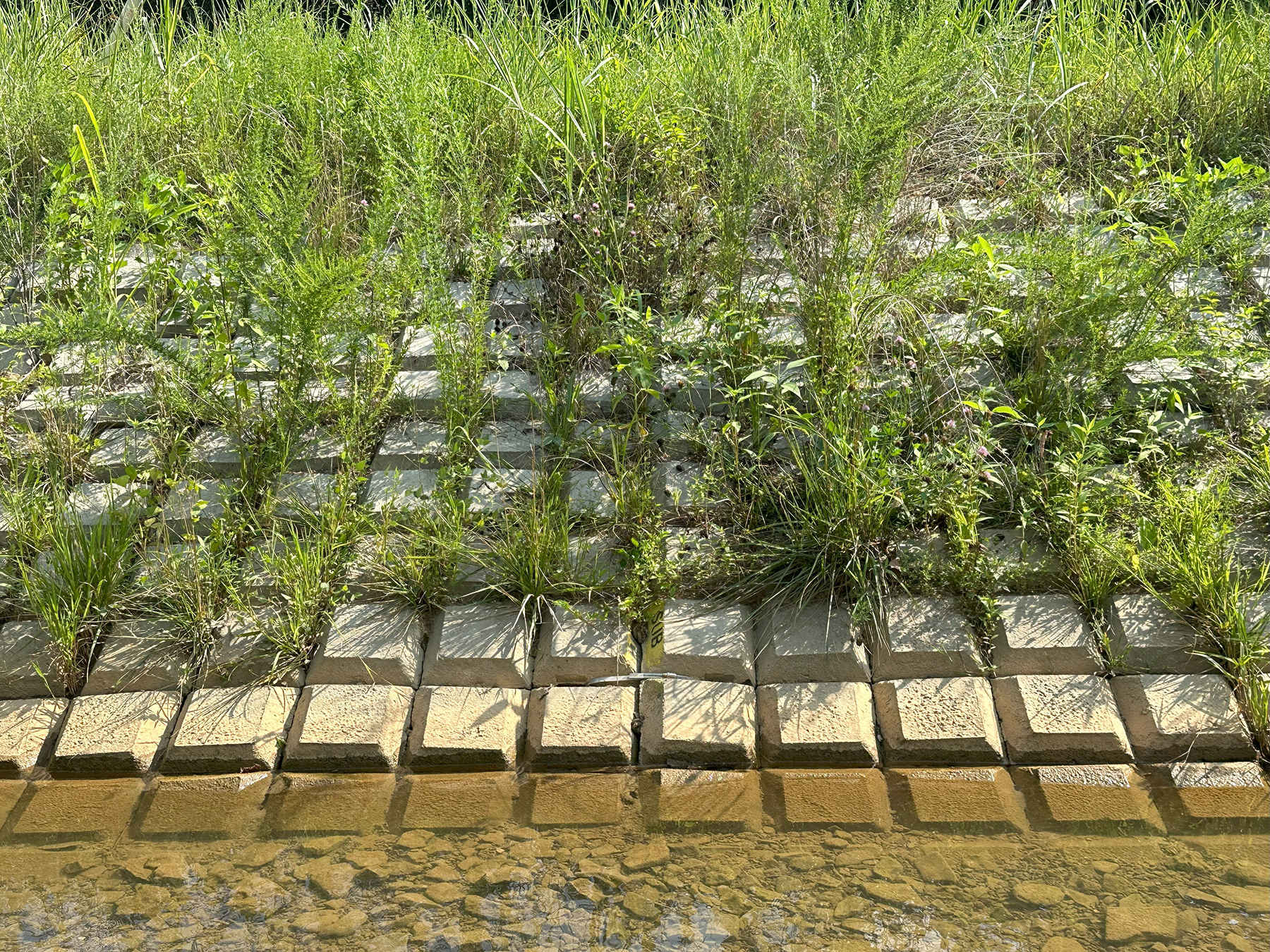

  • The mats allow for natural vegetation, restoring the look of a natural riparian corridor. The vegetation allows them to blend with the natural surroundings, creating wildlife habitats and increasing biodiversity within the stream.
  • Because the mattress articulates over time and acts as a grade control structure, the hard-armor mat system will hold the current grade and prevent future degradation of the streambed. Grade control structures can provide vertical stability to the local area around the structure and also to the entire channel system, thus having far-reaching, positive impacts.
  • This solution is an alternative to lowering the line: it is more cost-effective, and the construction will result in less overall disturbance.

Onshore Mat Video

ONshore Mat Specifications

  • Compressive strength of 4,000 psi (minimum)

  • Ultraviolet stabilized copolymer extruded fiber rope

  • Mats available as plain, single pad, or double pad protection

  • Custom mat dimensions available upon request

  • * Weights are ±3%



Configuration Dimensions Weight in Air (lbs)* Weight Submerged (lbs)*
W L H
4.5″ 8′ 20′ 4.5″ 6,200 3,600

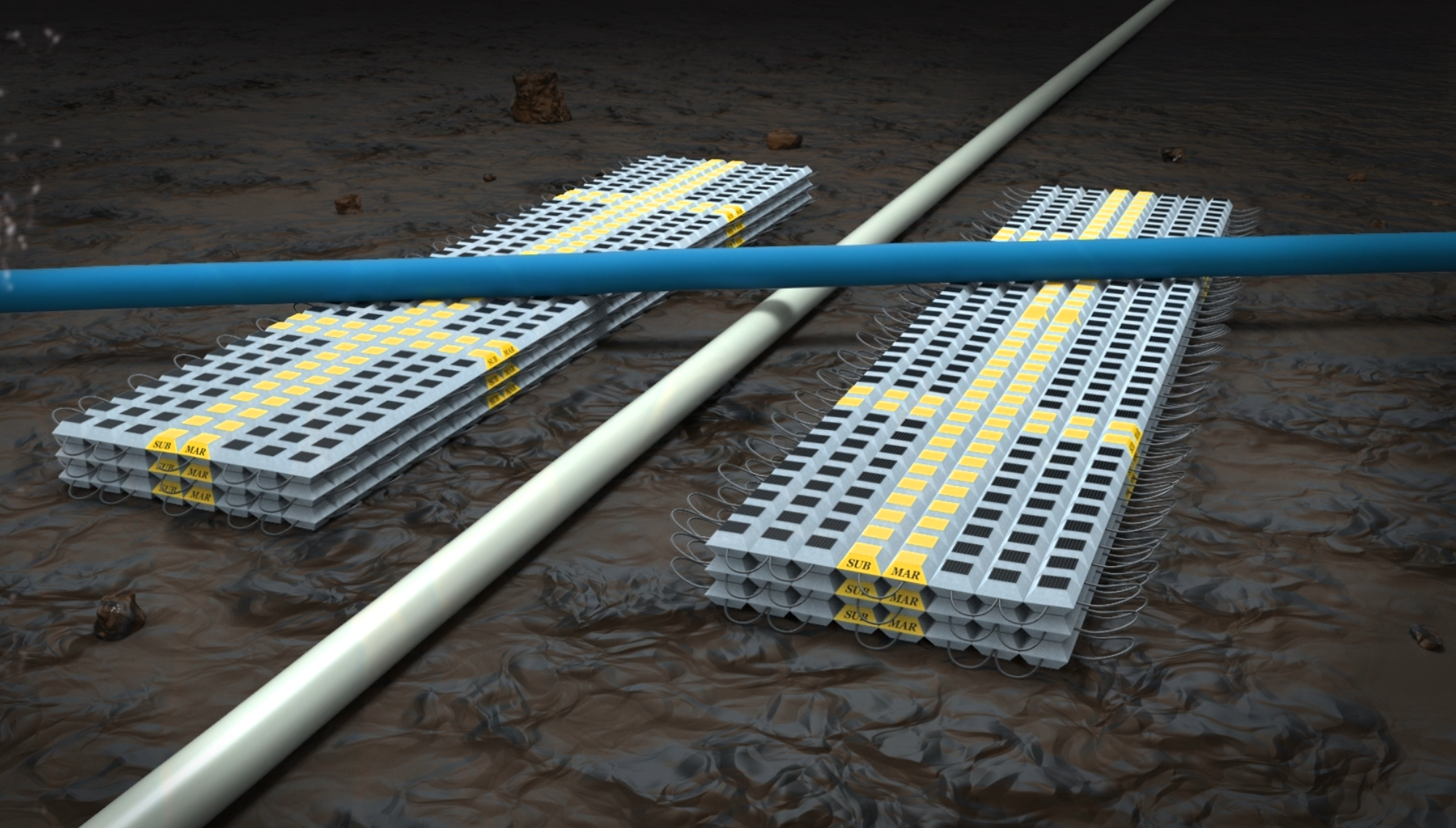

Offshore Mats

Submar offshore articulating mats provide a durable, low-maintenance solution for protecting pipelines. Their innovative, non-abrasive padding safeguards pipelines, ensuring both long-lasting protection and reduced wear.

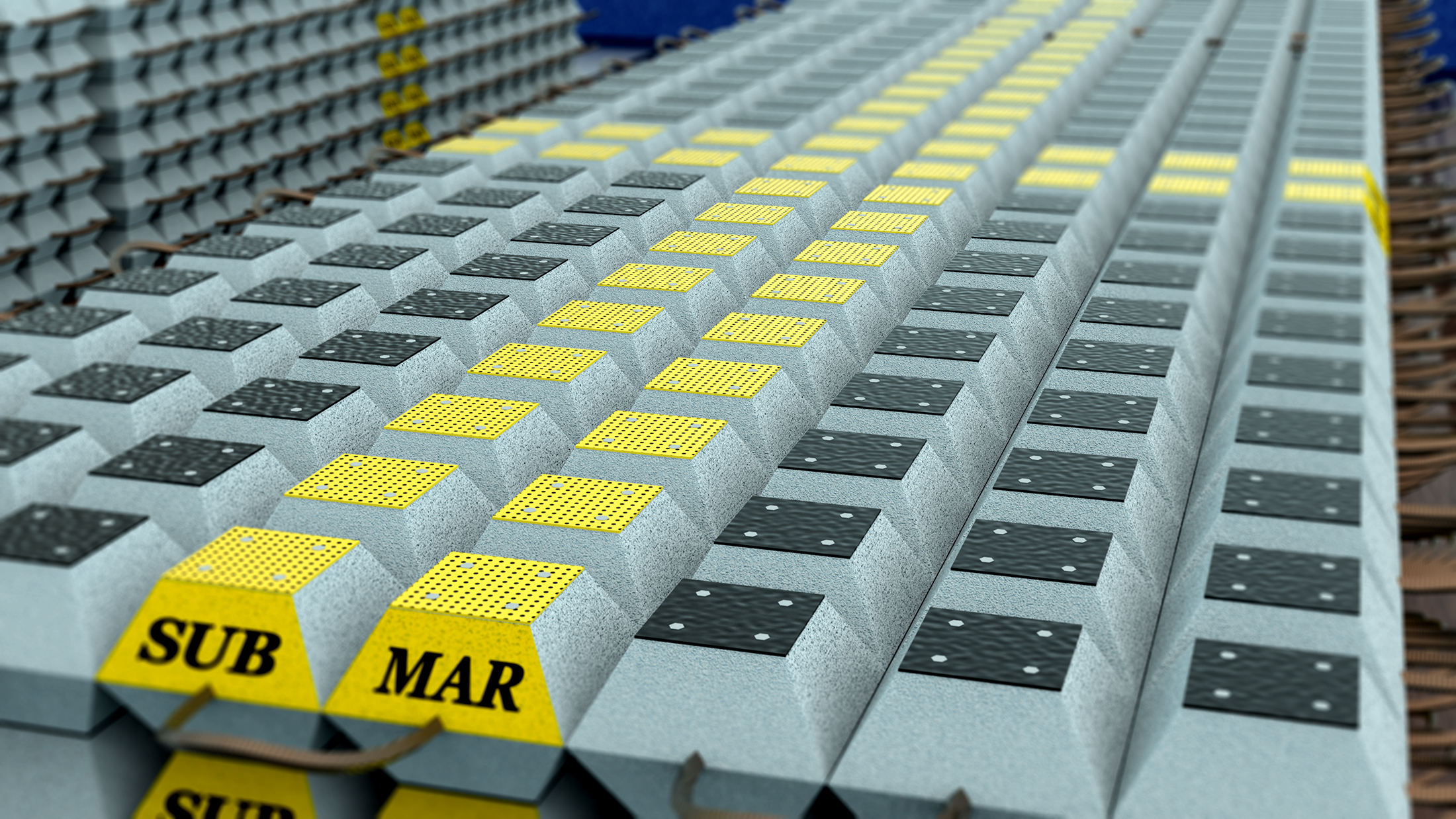

About Our OFFshore Mats

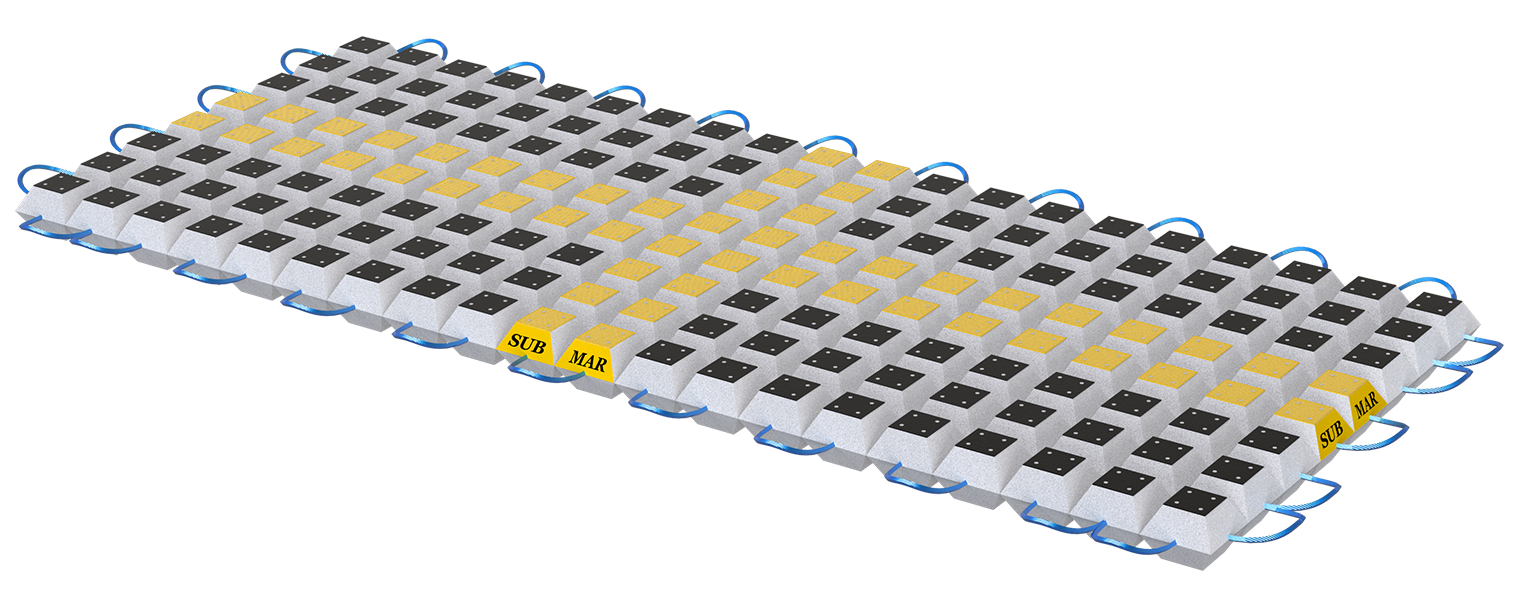

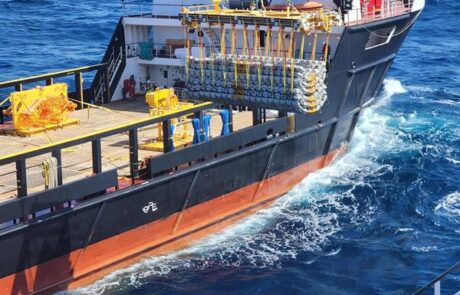

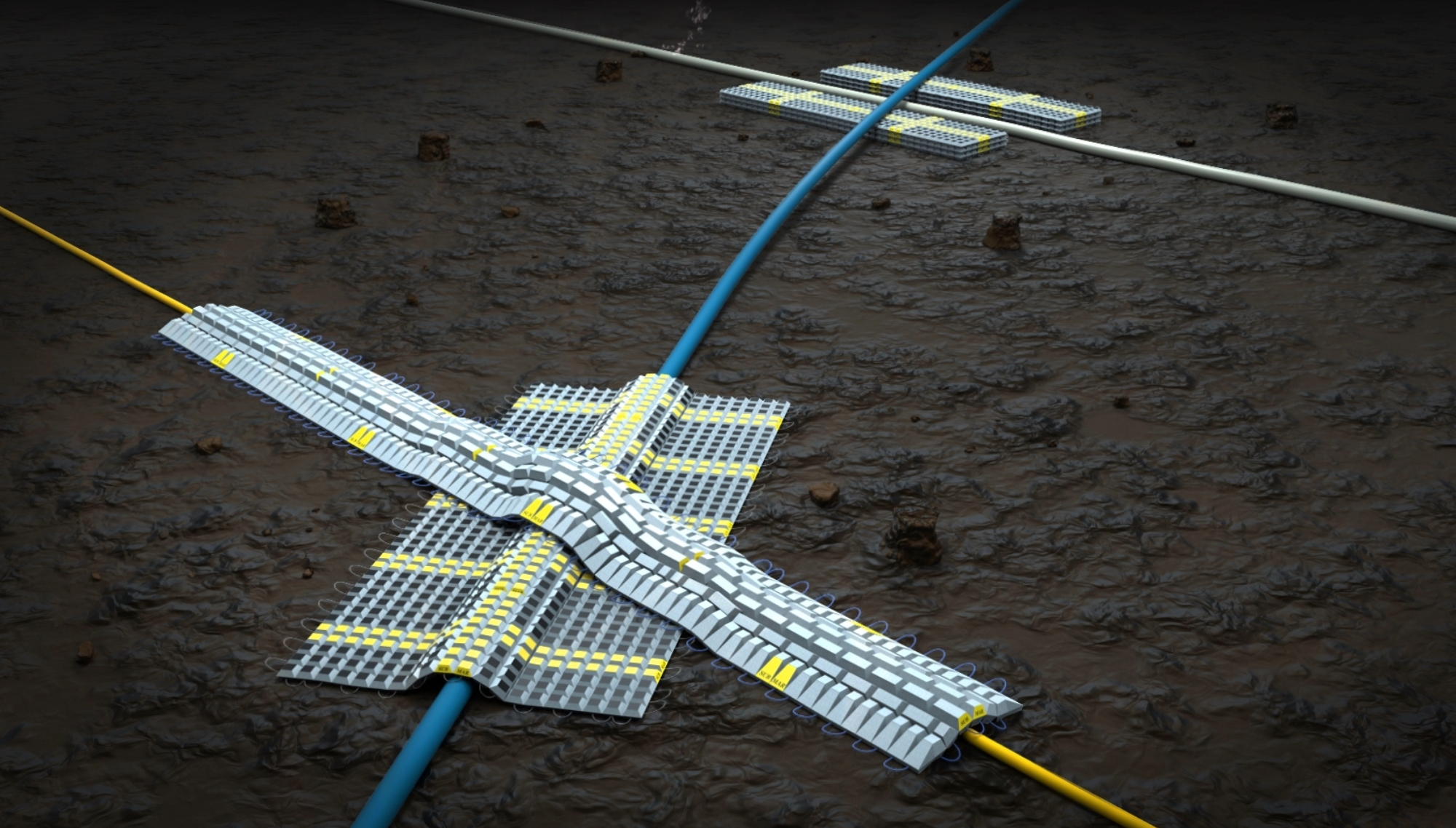

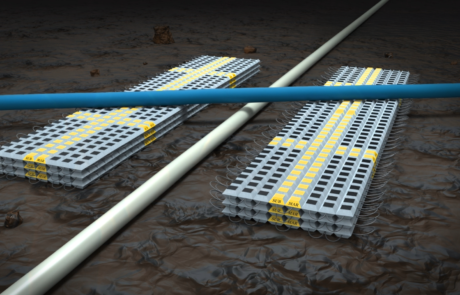

Submar’s offshore mats, also known as mud mats, are a BSEE-approved solution for pipeline protection, offering unmatched durability and safety in offshore environments. Designed with non-abrasive, non-shielding pads, they protect thin-film epoxy-coated pipelines from abrasion, outperforming traditional hard-armor methods like riprap and sandbags.

More About Our Mats

  • Submar’s offshore mats, approved by the Bureau of Safety and Environmental Enforcement, meet the highest standards for safety and durability in offshore applications.

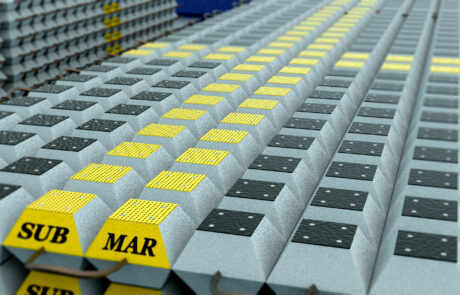

  • They offer enhanced pipeline protection with patented, non-abrasive pads that prevent damage to thin-film epoxy-coated pipelines, reducing wear and extending pipeline lifespan.
  • Designed as a more durable alternative to traditional hard-armor methods like riprap and sandbags, Submar mats provide long-lasting stability in harsh offshore environments.
  • Environmentally responsible, Submar mats comply with the Louisiana Department of Natural Resources Coastal Use Permit General Permit 24, supporting sustainable coastal practices.
  • These mats present a cost-effective, low-maintenance solution, significantly reducing the need for frequent upkeep and replacements.
  • With flexible applications across various offshore and coastal protection needs, Submar mats ensure adaptable, reliable protection for a range of project requirements.
  • Easily deployed and adaptable to different site conditions, Submar mats allow for quick installation, minimizing project timelines and reducing operational downtime.

Offshore Mat Video

Offshore Mat Specifications

  • Compressive strength of 4,000 psi (minimum)

  • Ultraviolet stabilized copolymer extruded fiber rope

  • Mats available as plain, single pad, or double pad protection

  • 10’ & 12’ wide mats available at vessel load out locations only

  • Custom mat dimensions available upon request

  • * Weights are ±3%





Configuration Size Dimensions Weight in Air (lbs)* Weight Submerged (lbs)*
W L H
9″ 8’x20′ 8′ 20′ 9″ 10,500 5,780
12″ 8’x20′ 8′ 20′ 12″ 13,500 7,420
12″ Staggered 8’x20’ 8′ 20′ 12″ 15,500 8,680
10’x20’ 10′ 20′ 12″ 19,380 10,840
12’x20′ 12′ 20′ 12″ 23,260 13,010
12″ Staggered & Tapered 8’x20′ 8′ 20′ 12″ 14,500 8,120
10’x20’ 10′ 20′ 12″ 18,380 10,280
12’x20′ 12′ 20′ 12″ 22,260 12,450

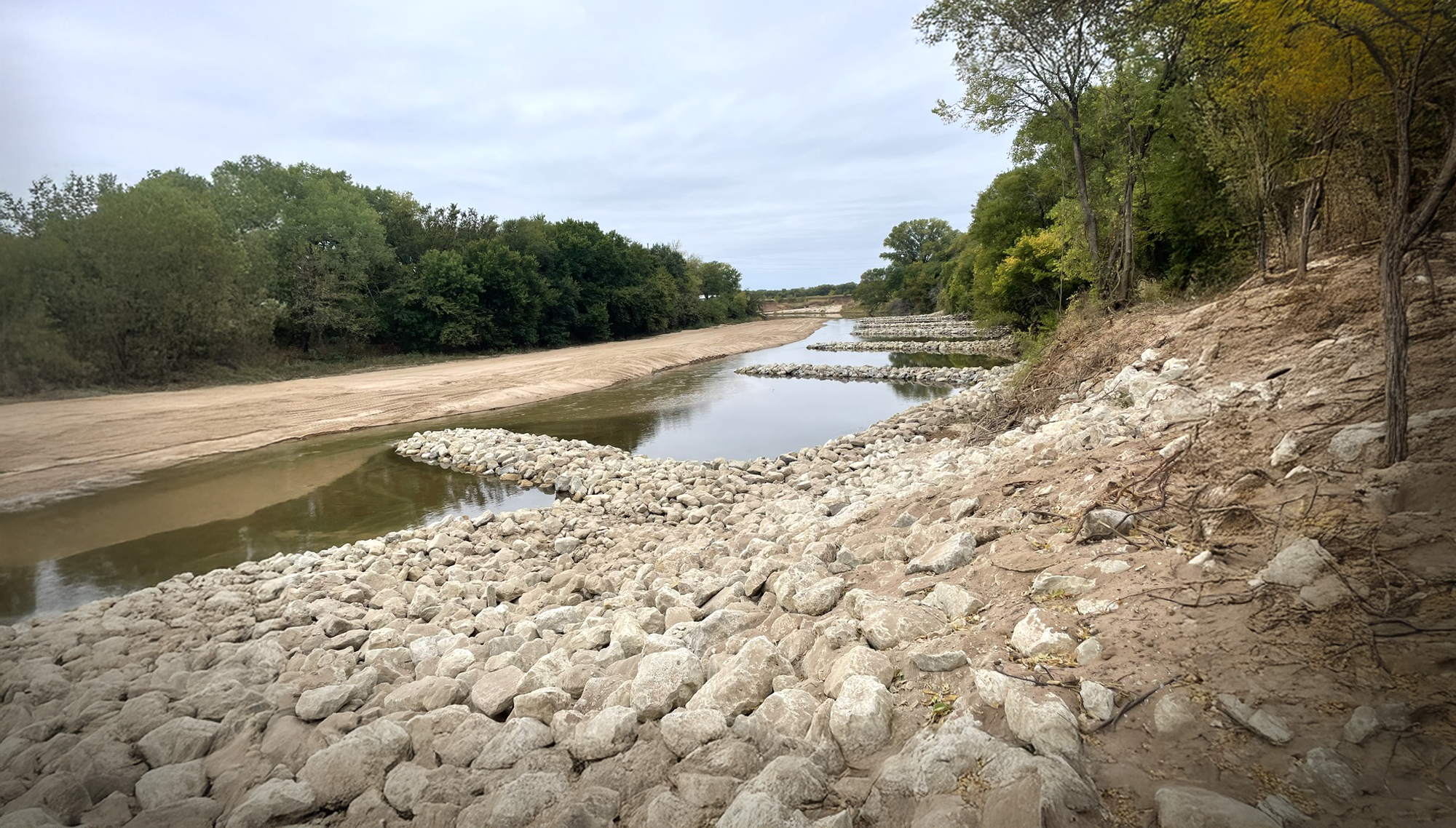

Turnkey Services

Our innovative approach ensures long-term pipeline protection while minimizing environmental impact and fostering sustainable ecosystems.

Submar offers comprehensive turnkey erosion control solutions that include hard and soft armor remediation products and methods. Submar mats offer a cost-effective alternative to lowering pipelines. They allow for vegetation growth to blend with the natural surroundings, creating wildlife habitats, and enabling biodiversity.

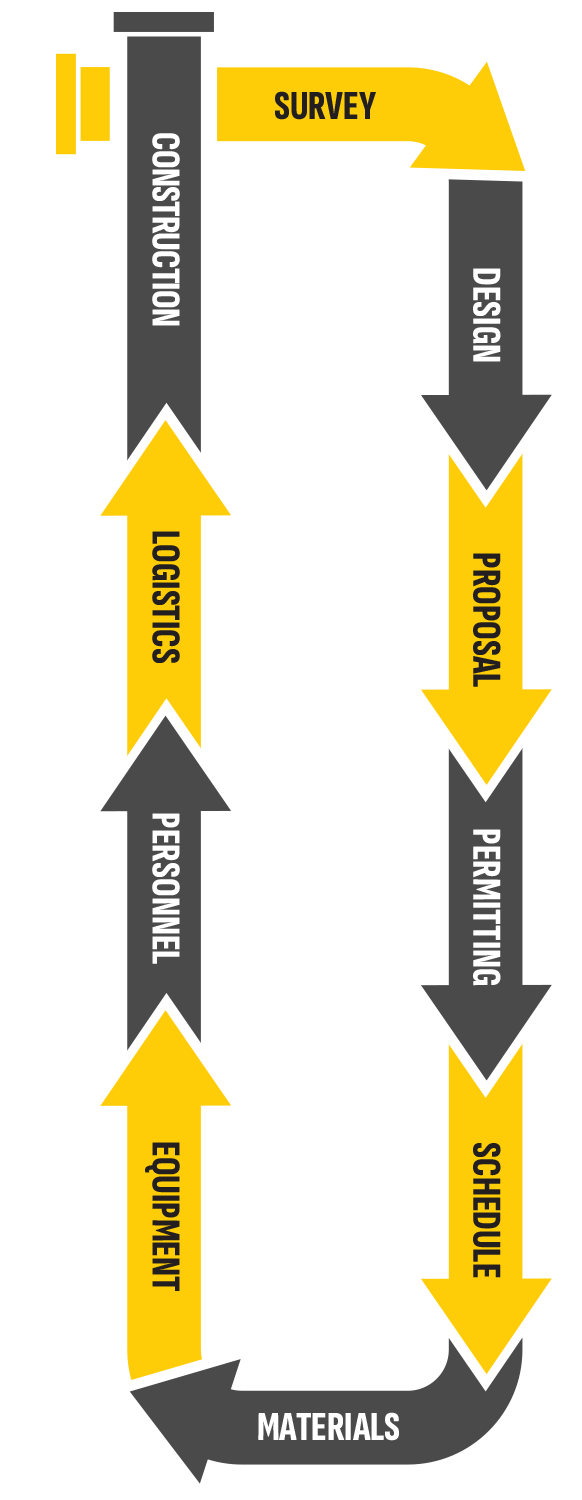

Our Process

  • Survey

    Regional Manager conducts a site assessment including photos, video, and a topographical survey using Trimble Survey Equipment.

  • Design

    Civil design team uses AutoCAD Civil 3D Design software to prepare topographic maps of current conditions and design solution.

  • Permitting

    Environmental team obtains permits with all regulatory bodies, including federal, state and local agencies.

  • Project Management

    PM team manages scheduling, materials, equipment, personnel, logistics, and construction planning.

  • Construction

    Typical projects include site preparation, pipeline refurbishment, erosional control installation, and site restoration.

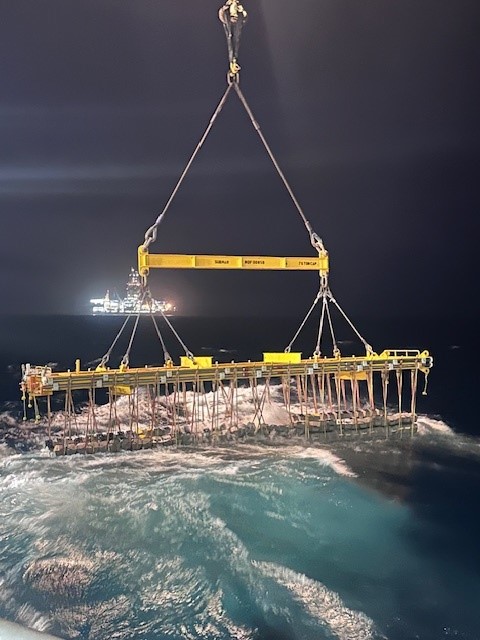

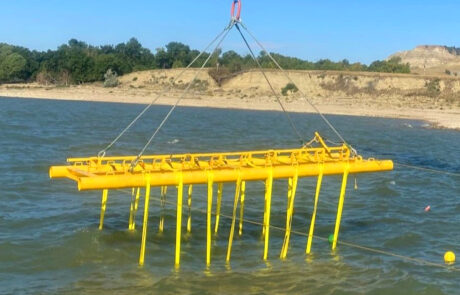

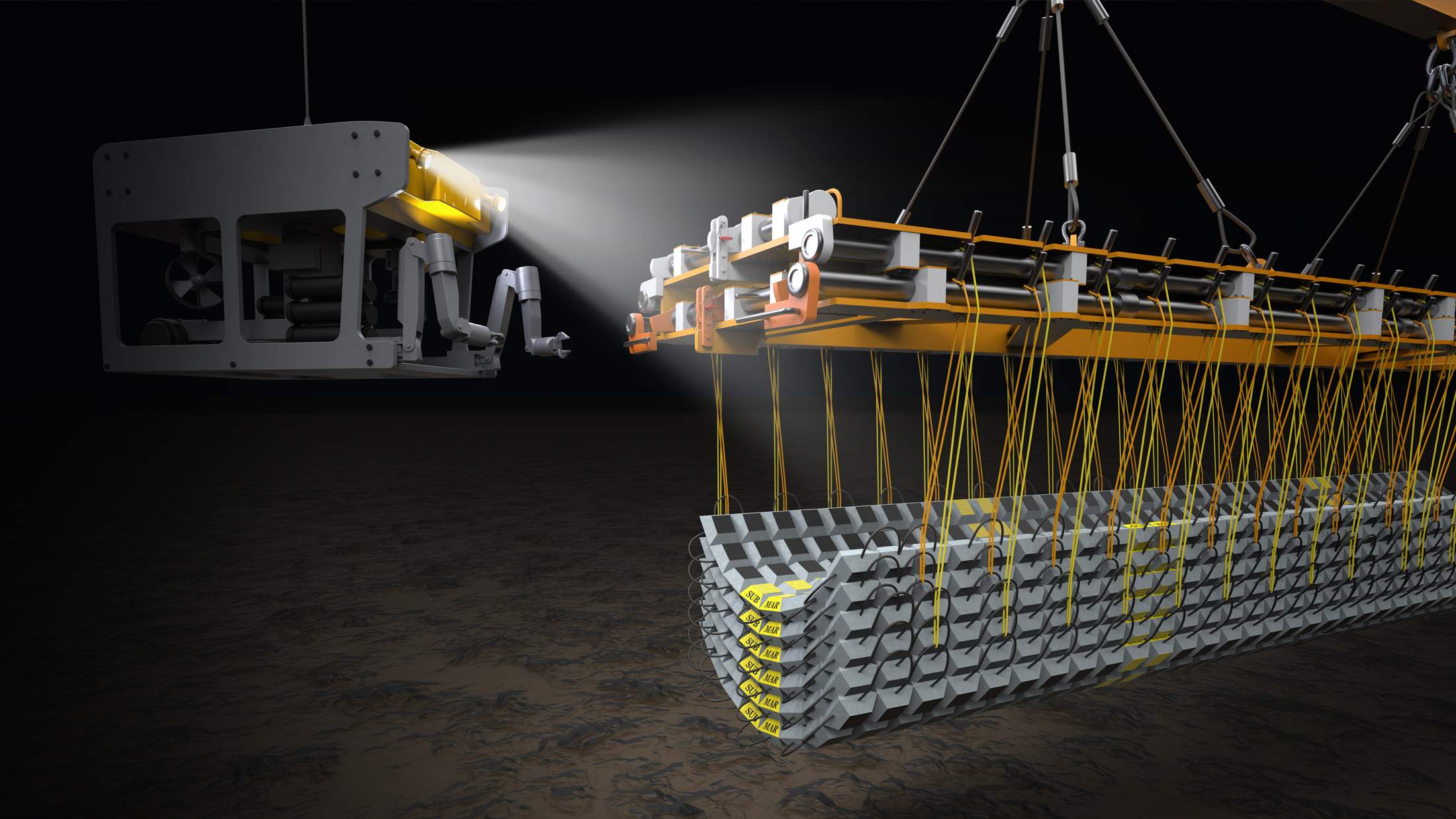

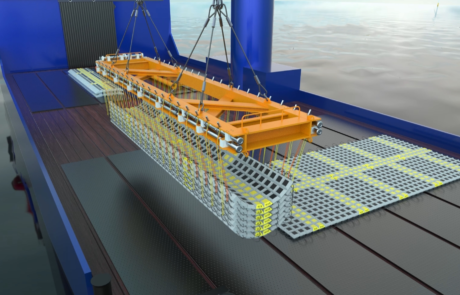

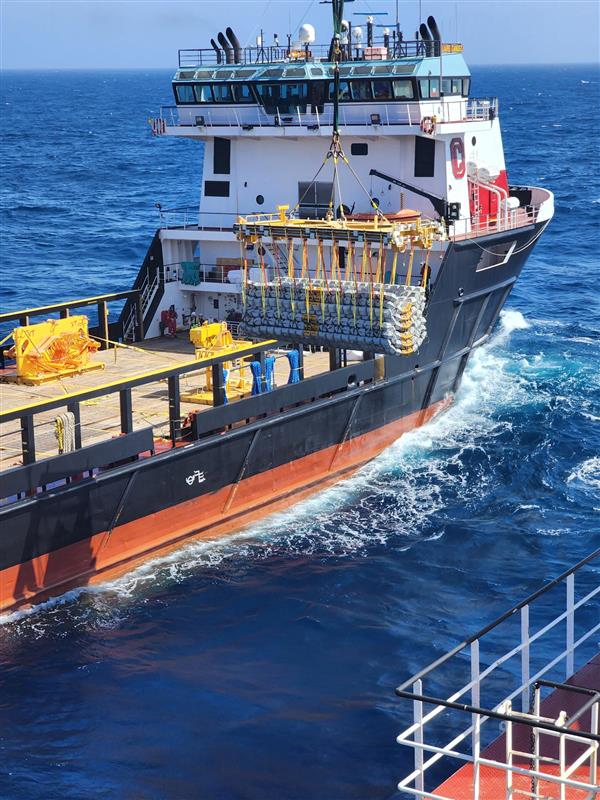

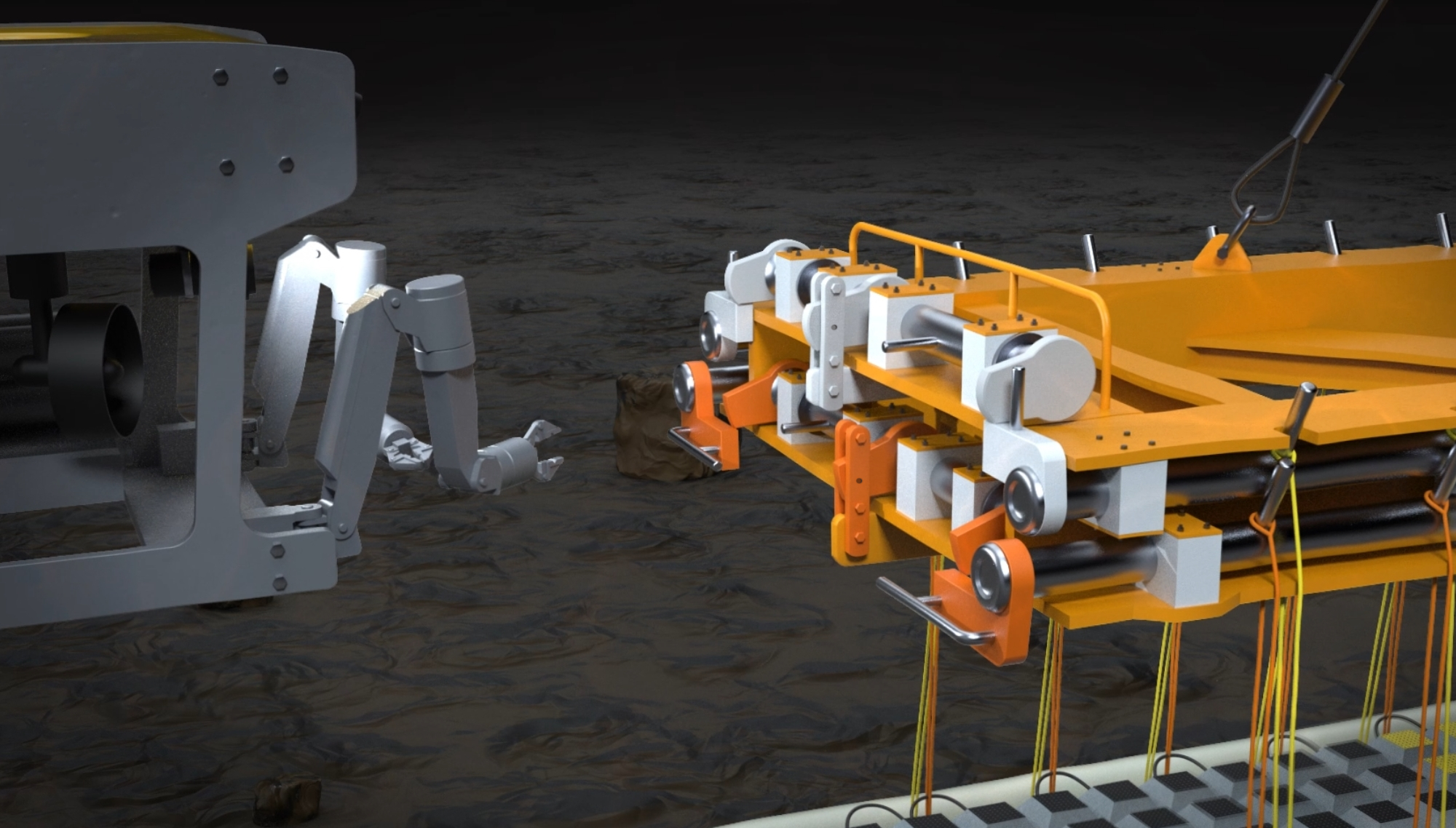

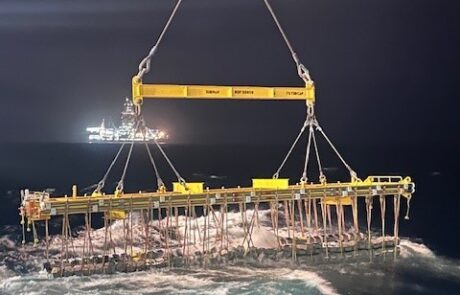

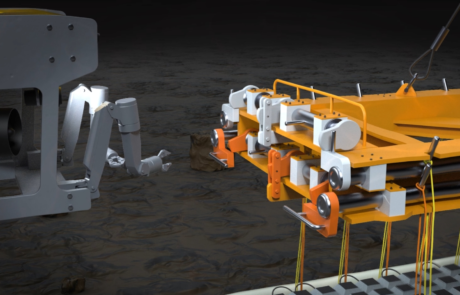

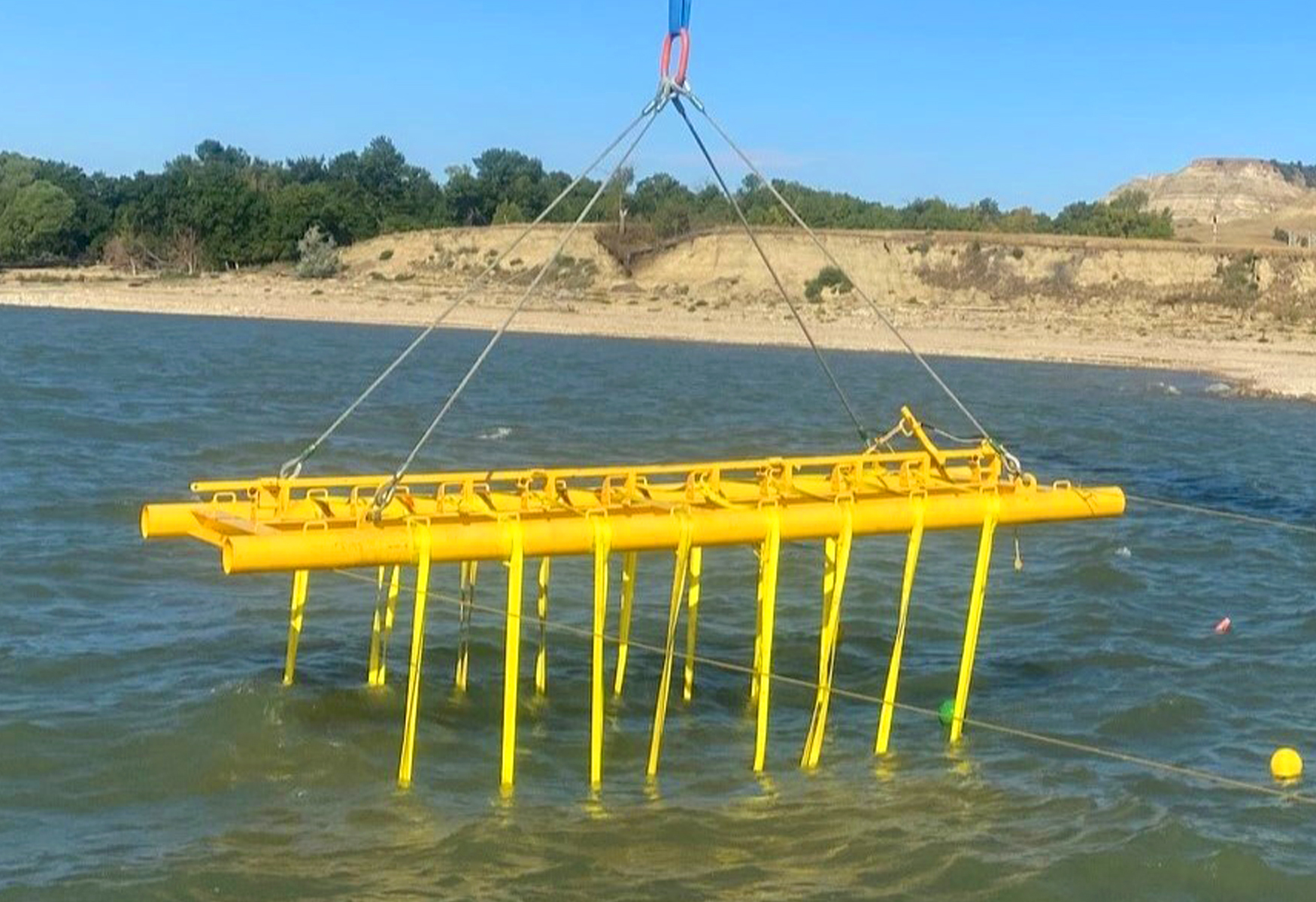

DeployMENT Frames

Each of our Submar deployment frames is rigorously tested to ensure durability and performance, even in the most demanding offshore environments.

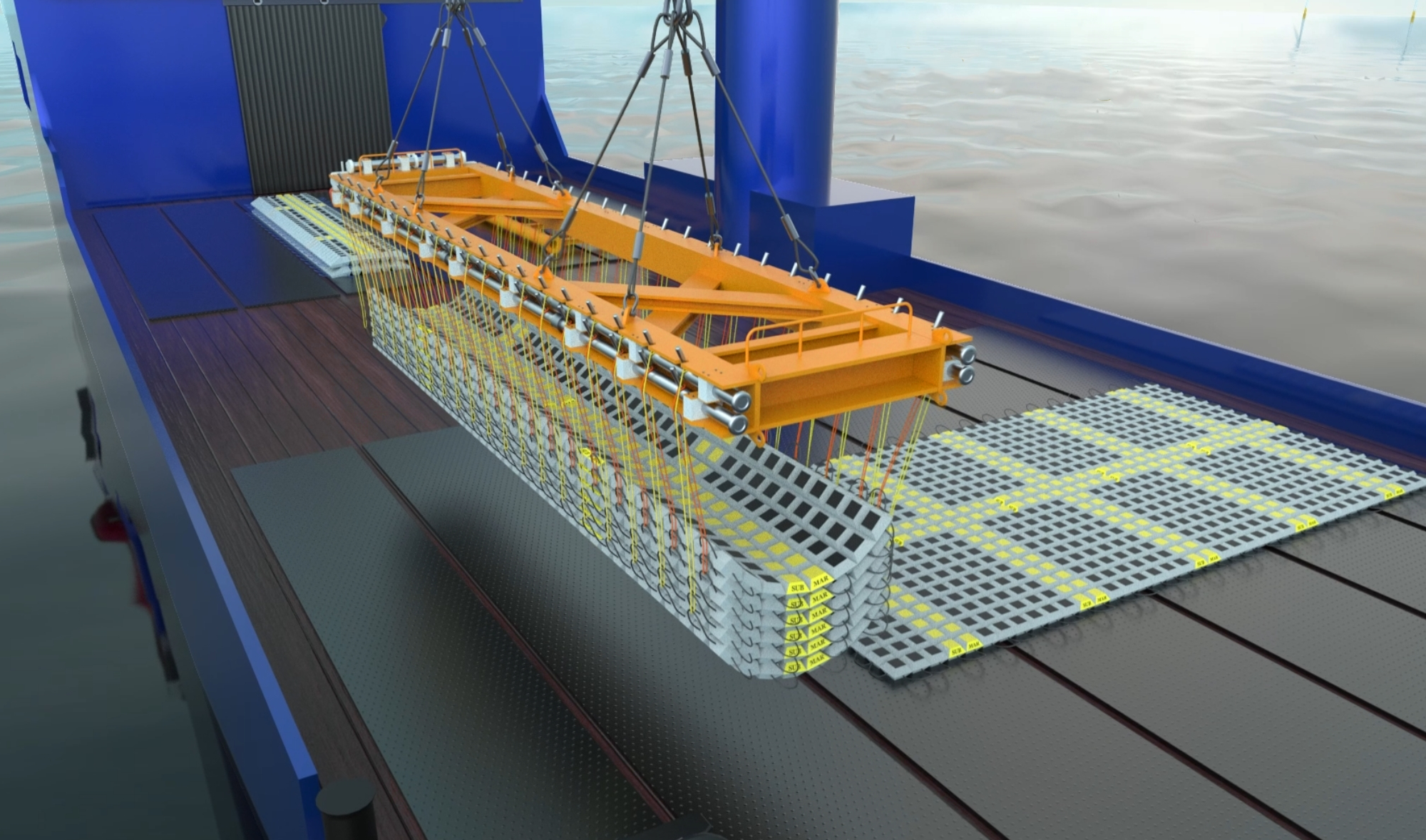

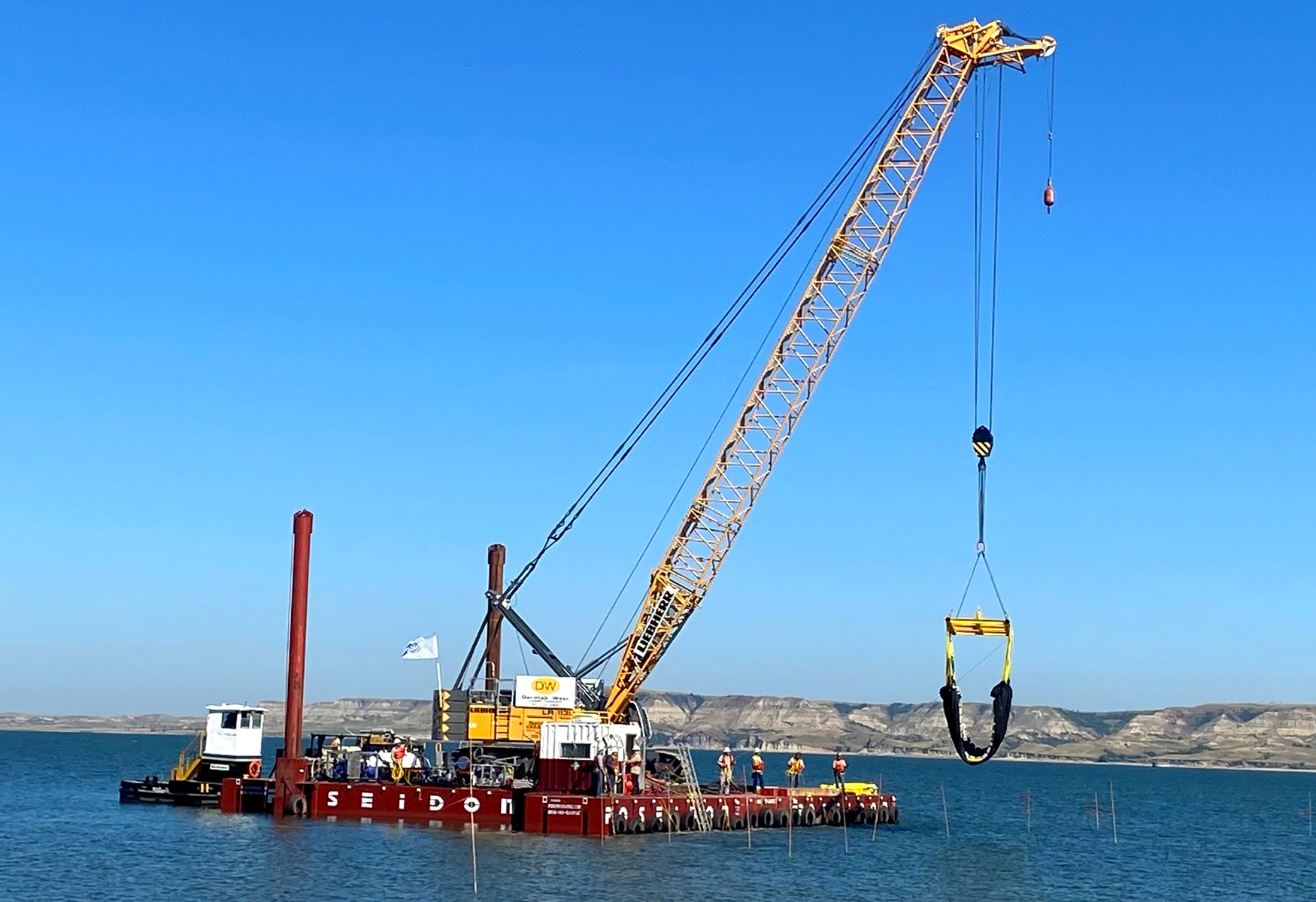

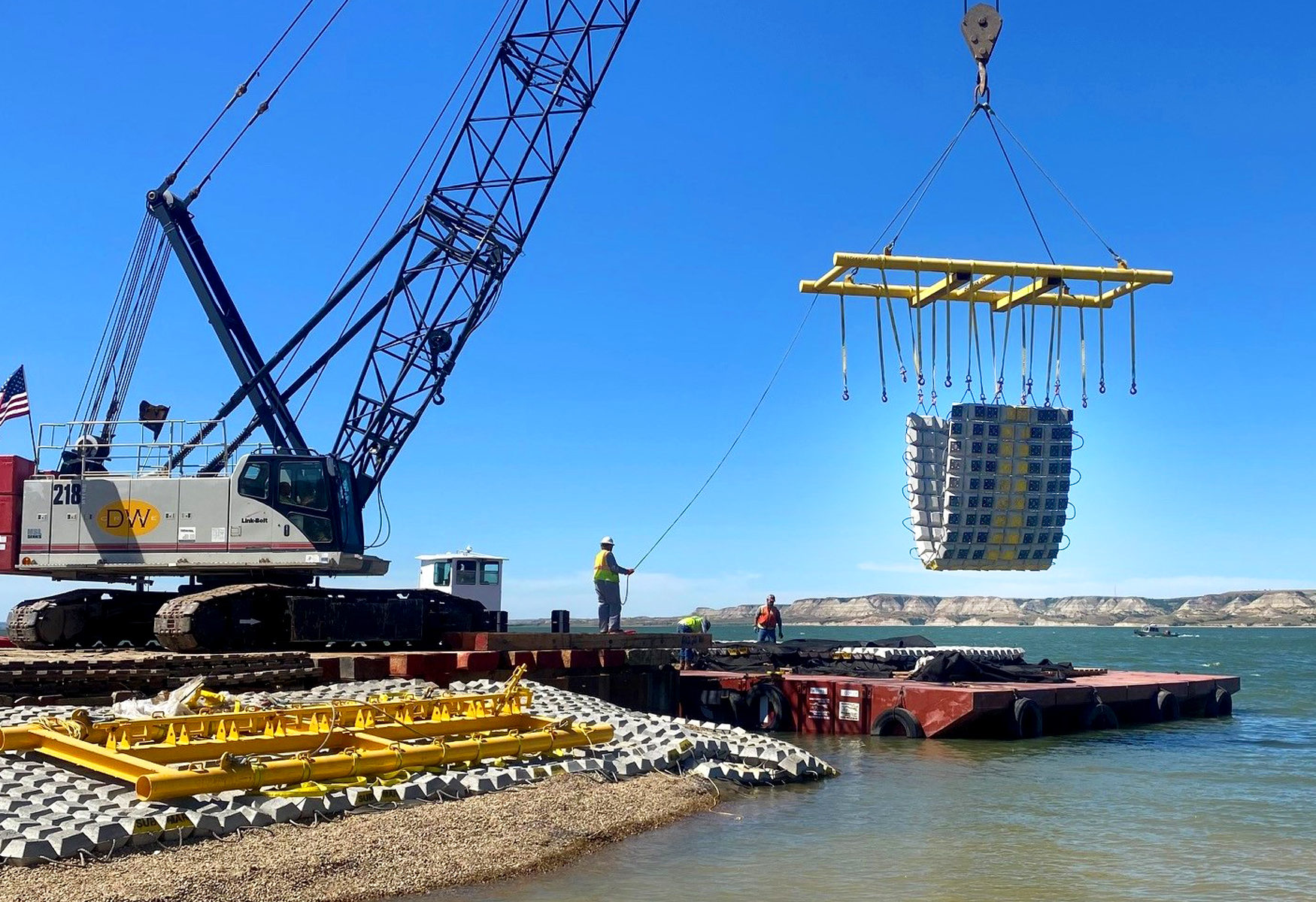

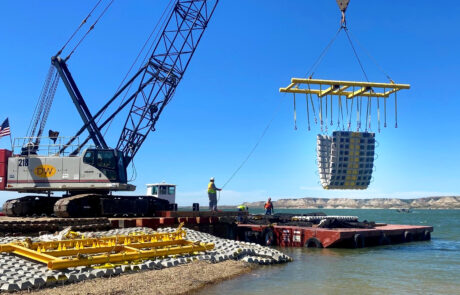

As a complement to our offshore concrete mats, we offer a full line of deployment frames to safely place our mats. Whether you’re working in 5 feet or 14,000 feet, we have a frame suited for your deployment.

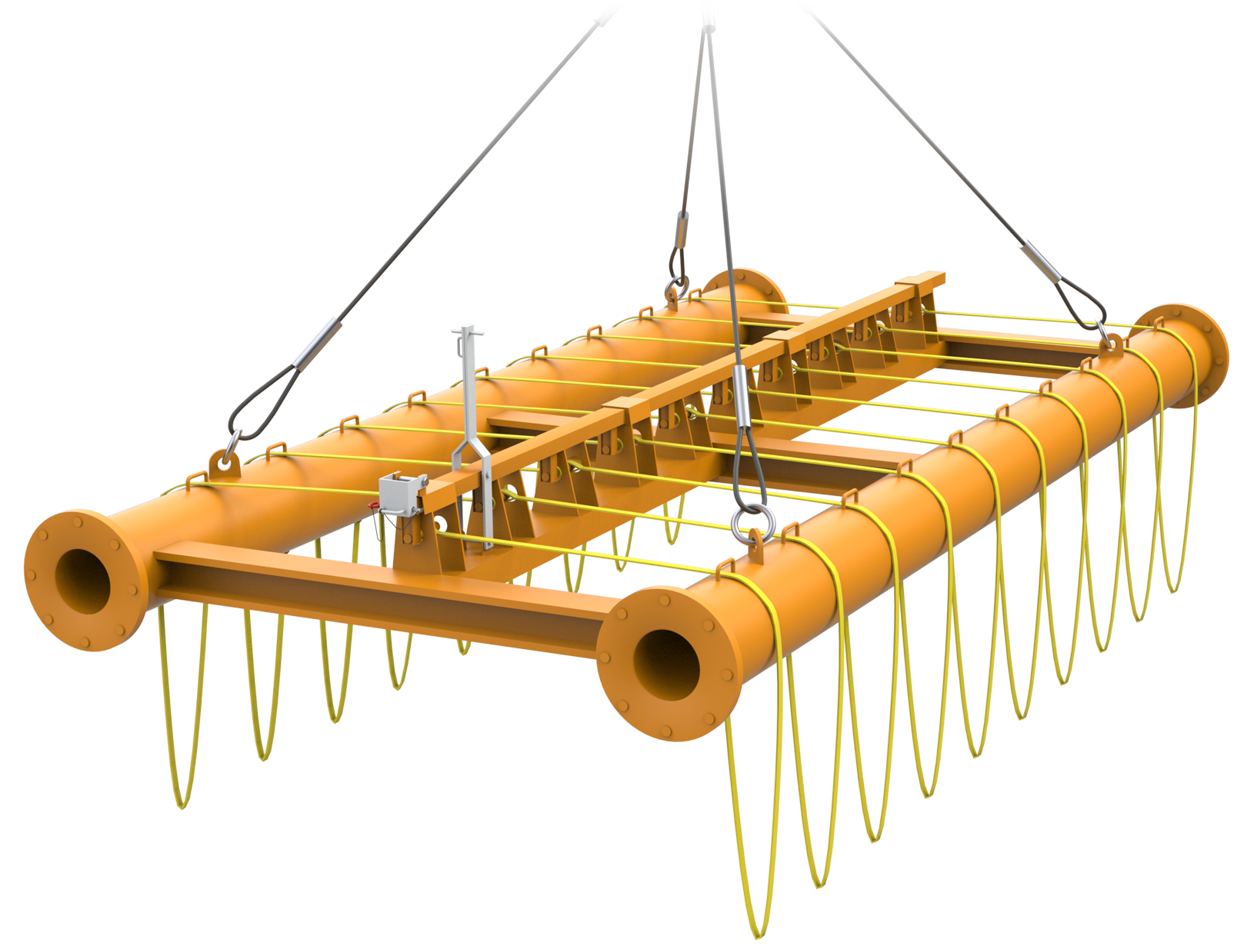

20' Single Mechanical Deployable Frame

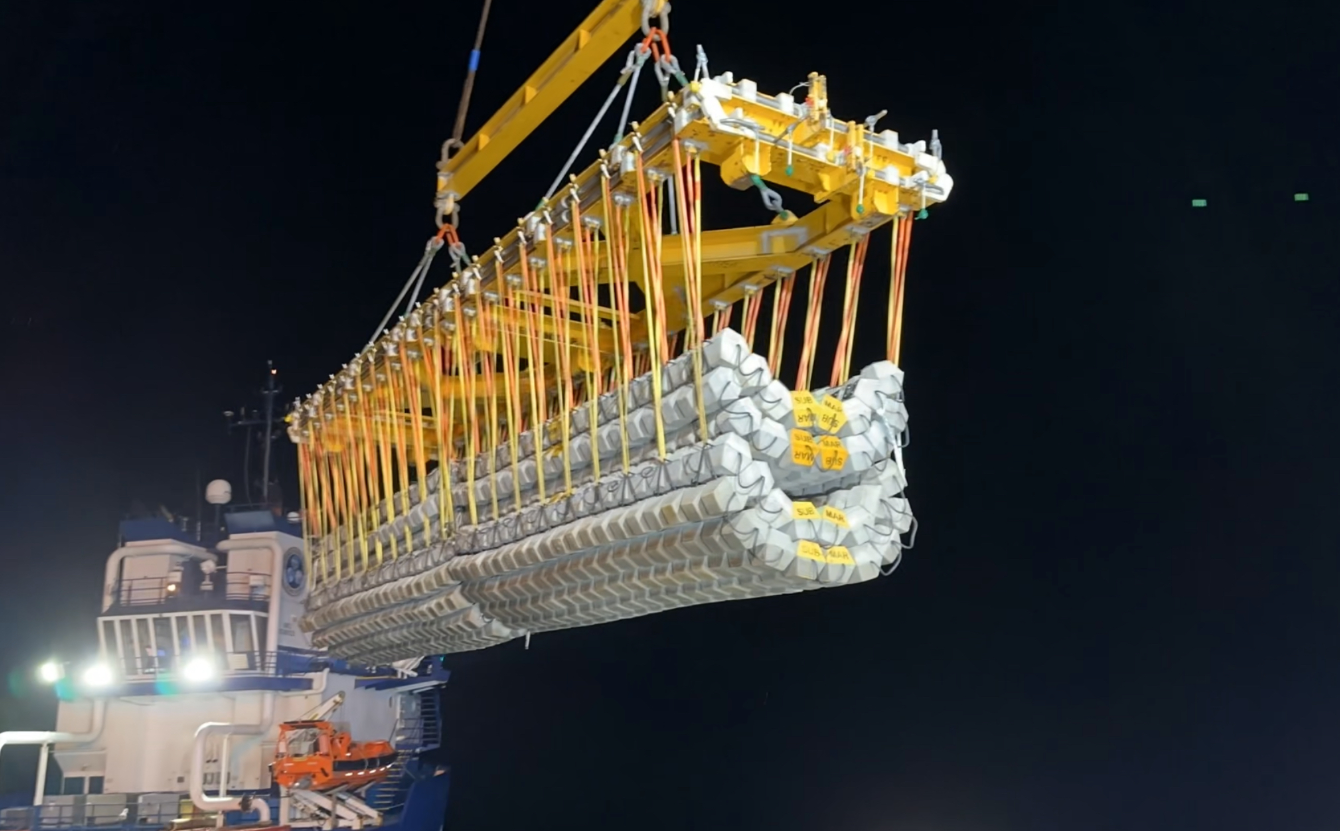

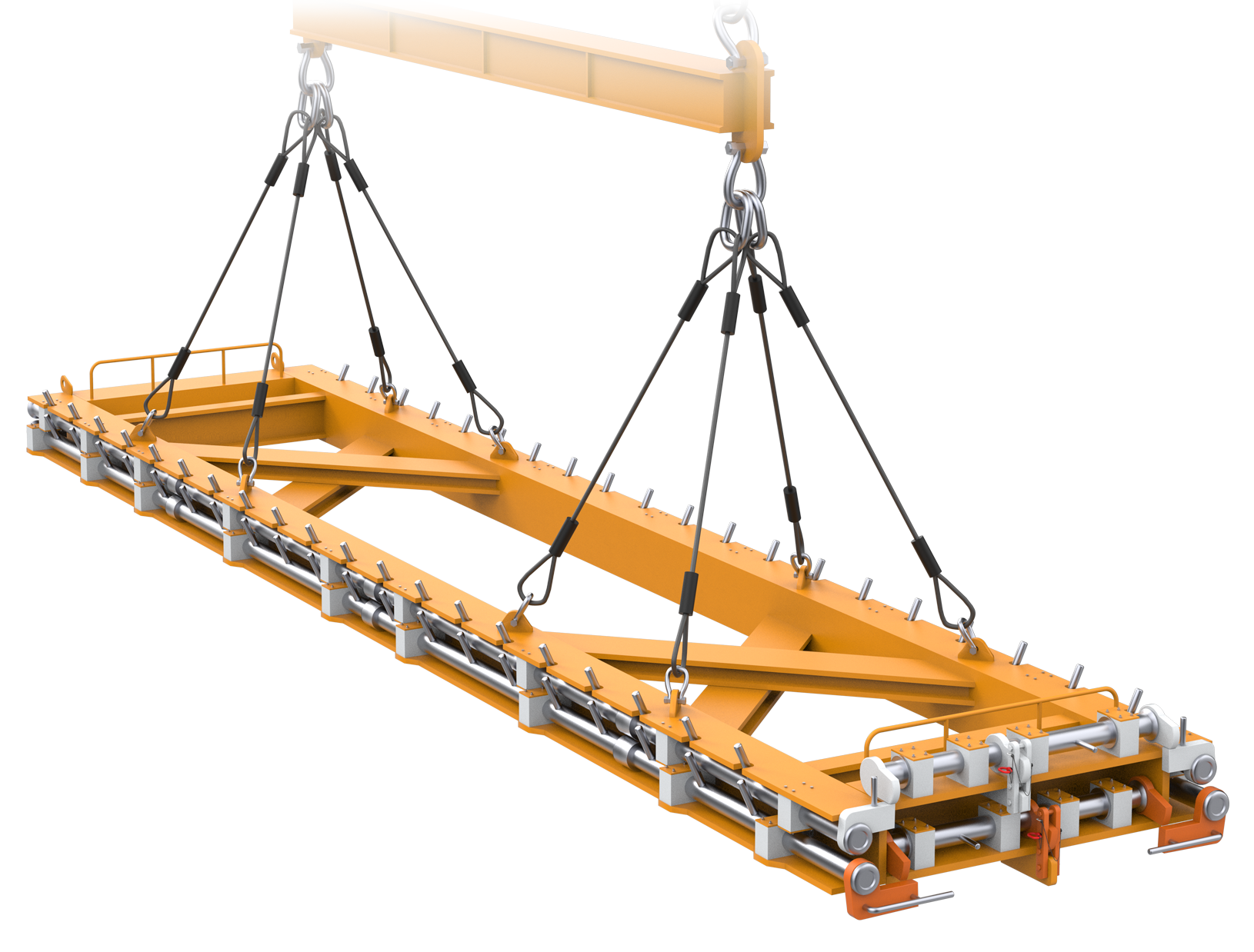

OS 40' Dual Mechanical Deployable Frame

  • Versatile Depth Capability

    Our deployment frames are designed to operate efficiently at any depth, from shallow waters to deep-sea environments. This ensures precision placement and unmatched adaptability for diverse project needs.

  • Enhanced Safety and Control

    Engineered for secure handling, our frames minimize risks during deployment, protecting both equipment and personnel. This added layer of control ensures the successful installation of offshore mats in challenging conditions.

  • Efficiency in Installation

    Our deployment frames streamline the mat placement process, reducing installation time and labor costs. This efficiency ensures your project stays on schedule and within budget, even under tight deadlines.

  • Customizable Solutions

    With a variety of frame options, we can tailor the deployment process to your project’s unique requirements. From size to operational features, our frames provide flexibility and reliability for optimal results.

Deployment Frame Specifications

Deployment Frame Type Dimensions Empty Weight (lbs) Submar 8′ x 20′ Mat Quantity Per Deployment WLL Load Capacity
4.5″ 9″ 12″ Standard
12″ Staggered & Tapered		 12″ Staggered Tons lbs
Diver/Manual Frame/Yard 8’x20′ 2,518 3 2 1 1 10.5 21,000
20′ Single Mechanical 8′ 3″ x 20′ 3,183 5 3 2 1 15.75 31,500
40′ Single Mechanical 8′ 3″ x 40′ 8,600 10 6 4 3 31.5 63,000
60′ Single Mechanical 8′ 3″ x 60′ 13,550 15 9 6 5 47.25 94,500
OS 20′ Dual Mechanical (2 Sets of Pins) 9′ 3″ x 20′ 2″ 13,000 10 6 4 3 31.5 63,000
OS 40′ Dual Mechanical (2 Sets of Pins) 9′ 3″ x 42′ 28,400 20 12″ 8 7 63 126,000

  • Submar deployment frames are supplied fully rigged

  • Submar deployment frames are designed for lifting Submar mats only

  • WLL – Maximum Working Load Limit

Deployment Frame video
